Node Comparison: Forest vs Lotus
This report compares Forest against Lotus while both nodes serve the similar real RPC provider traffic. Because the two nodes handled an almost identical request stream during the measurement window, the differences below reflect the nodes themselves rather than uneven load.
Environment

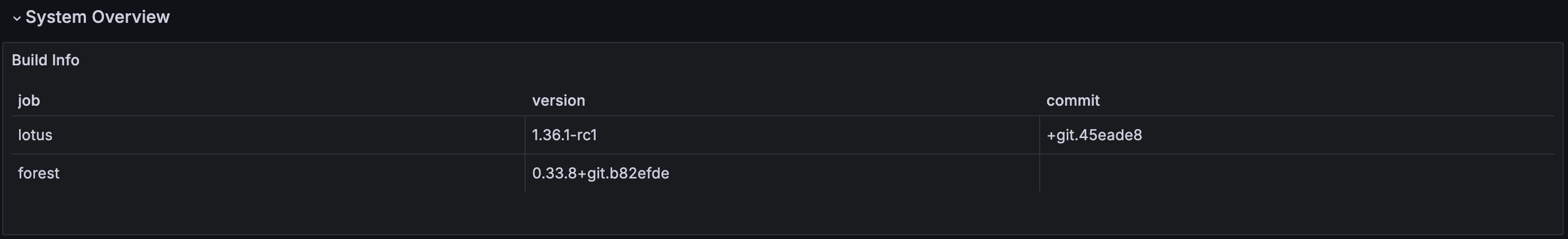

The comparison covers Lotus 1.36.1-rc1 and Forest 0.33.8.
RPC latency

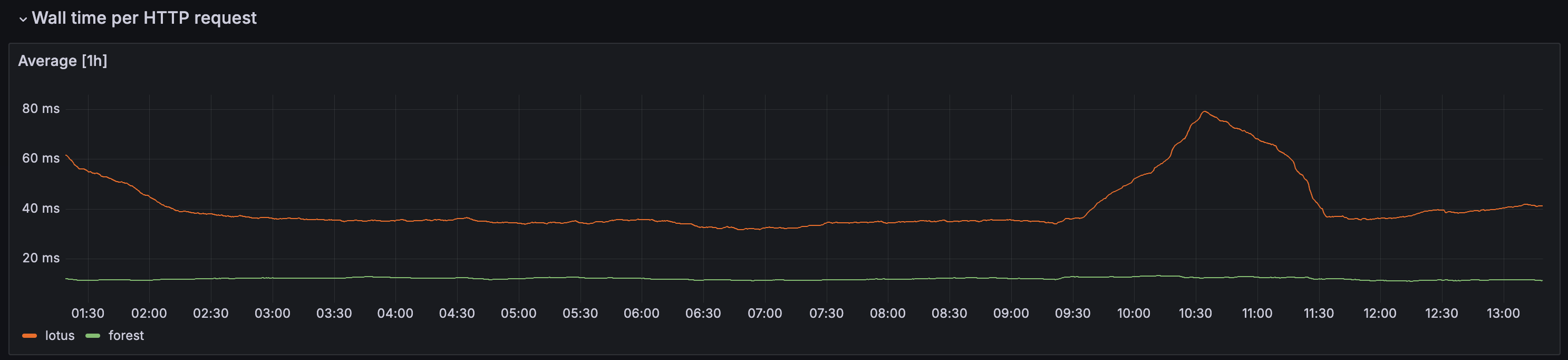

The clearest difference is in response latency. Forest keeps the average wall time per HTTP request near ~5 ms and remarkably flat, while Lotus sits an order of magnitude higher (~40-80 ms) and swings noticeably as load shifts.
Per-flow latency

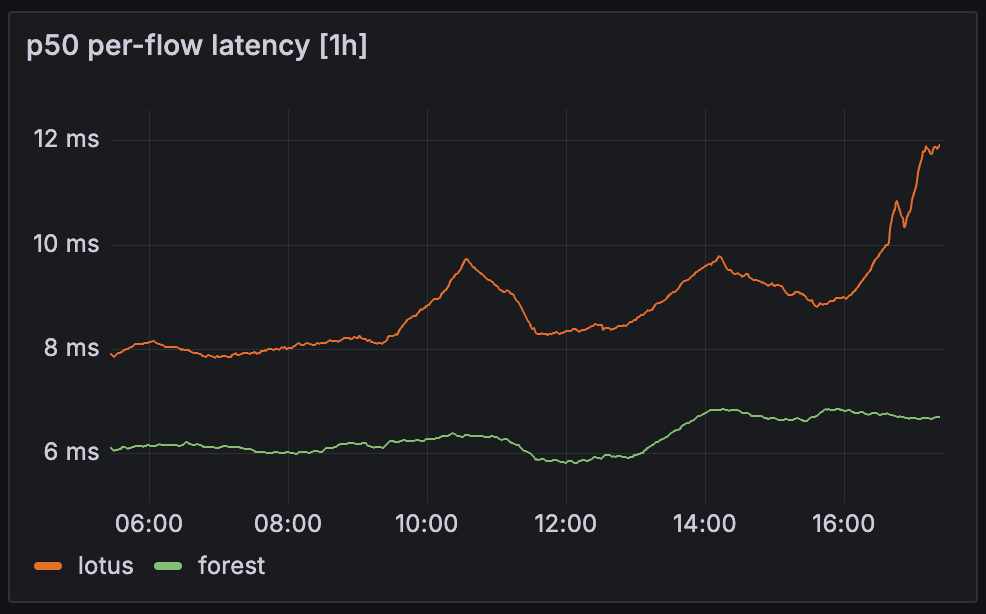

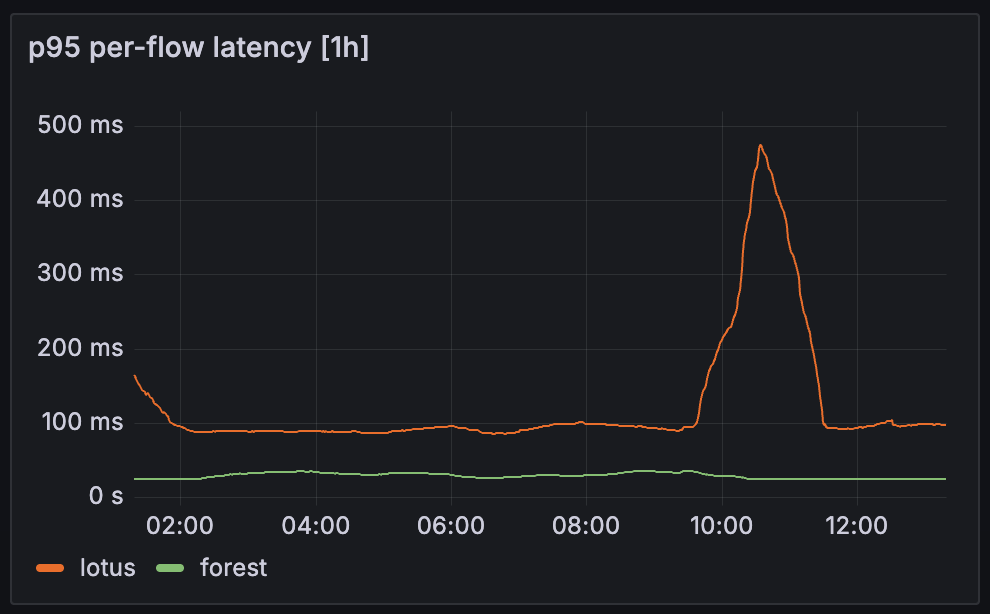

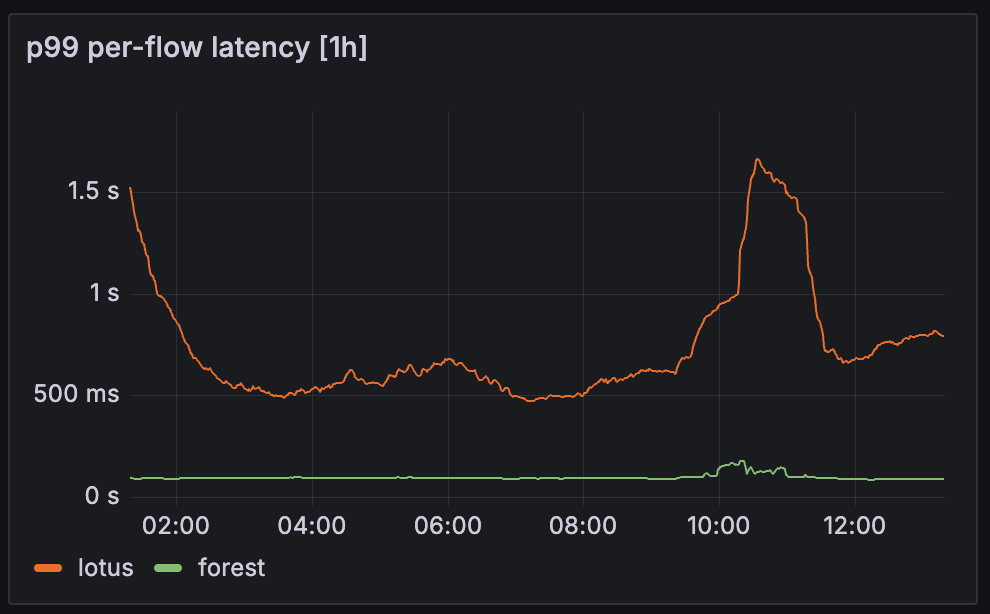

At the median (P50), the two nodes are close: Forest hovers around ~6-7 ms versus ~8-12 ms for Lotus. The gap widens sharply in the tail. At P95, Forest stays flat near ~25 ms while Lotus baselines around ~90 ms and spikes toward ~450-470 ms under pressure. At P99, Forest holds around ~150 ms while Lotus ranges from ~500 ms up to ~1.6 s. In practice this means the slow requests that hurt reliability the most are far rarer on Forest.

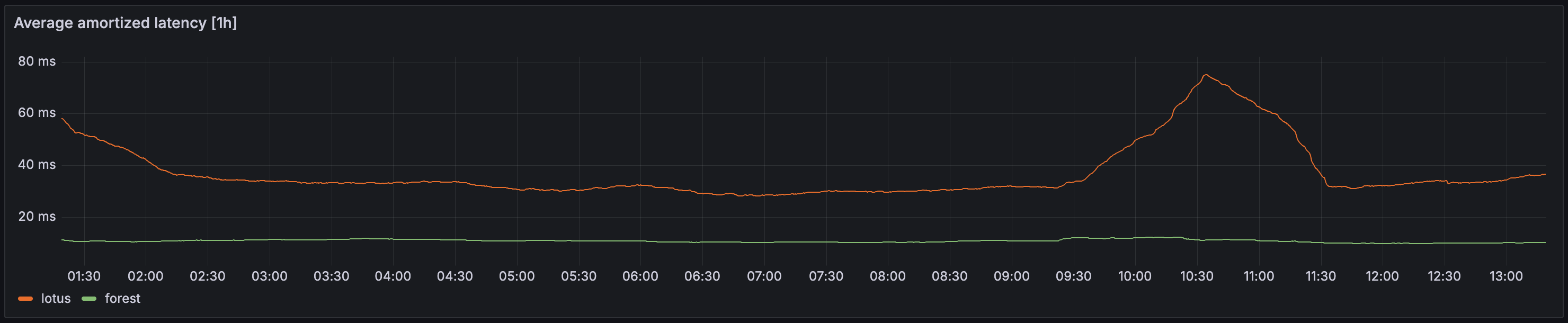

Amortized latency

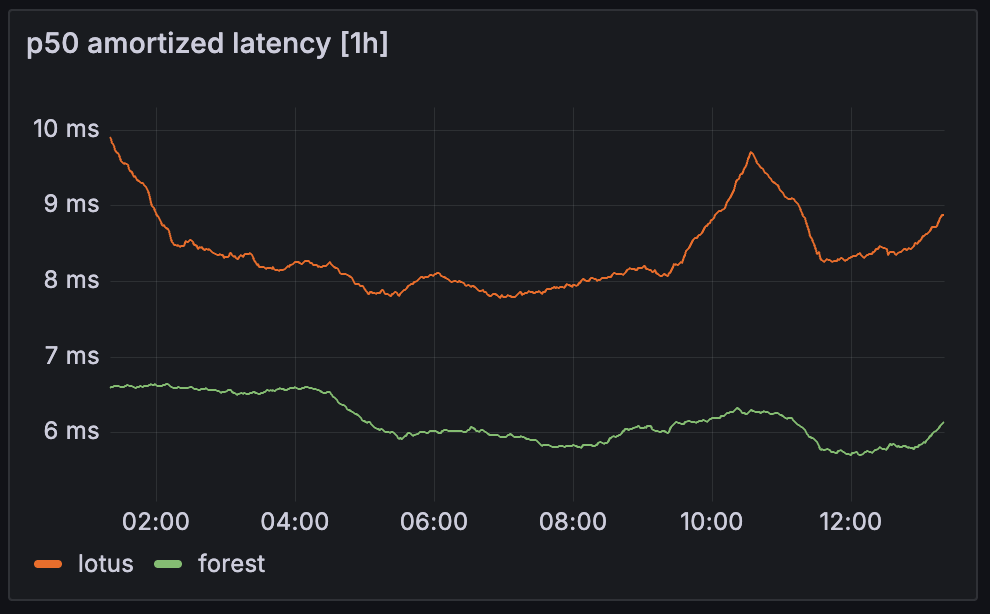

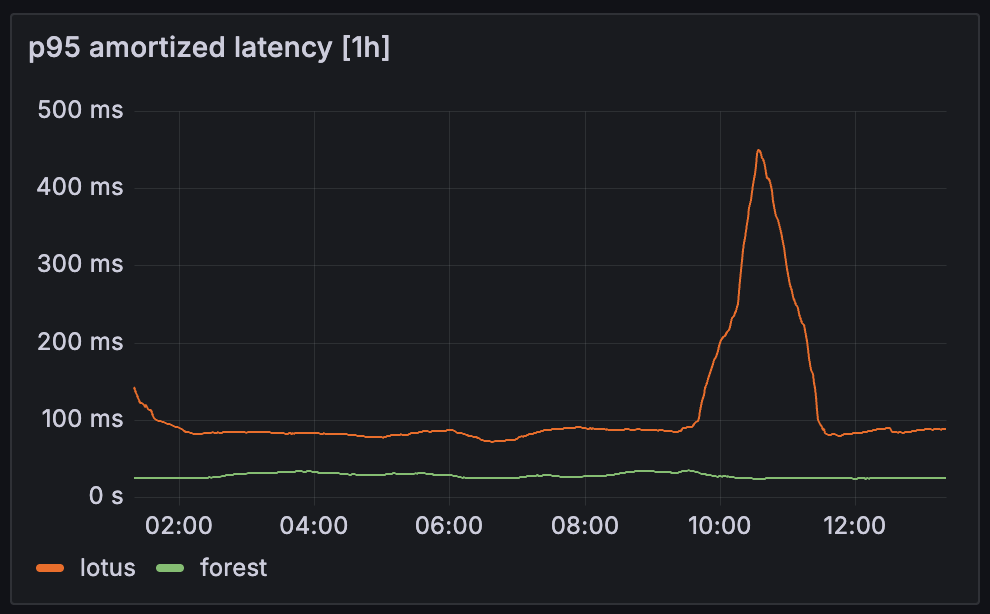

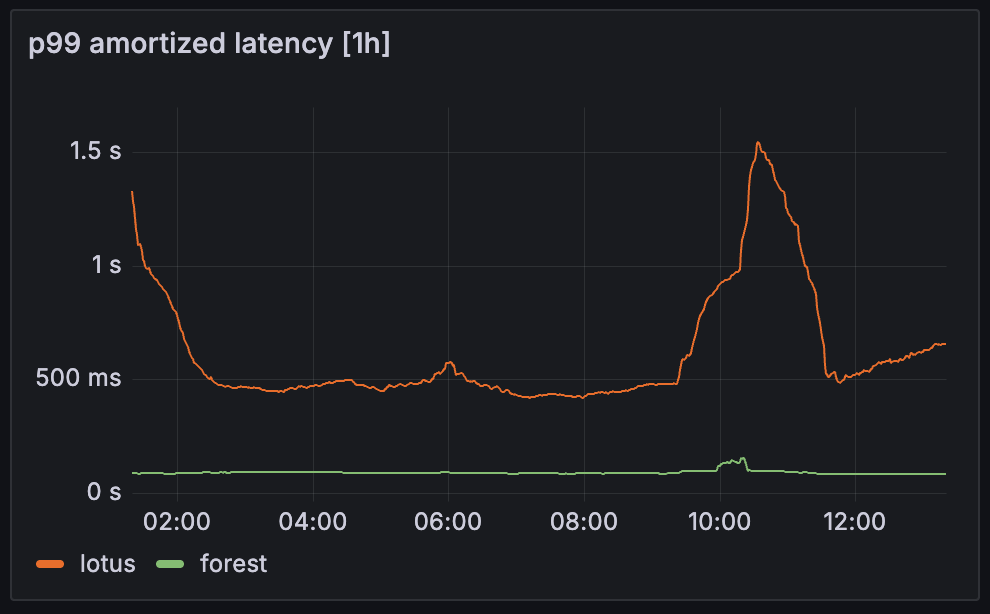

The amortized view, which accounts for batched requests, tells the same story: a small Forest advantage at P50 and a large one at P95, P99, and on average.
Comparable load

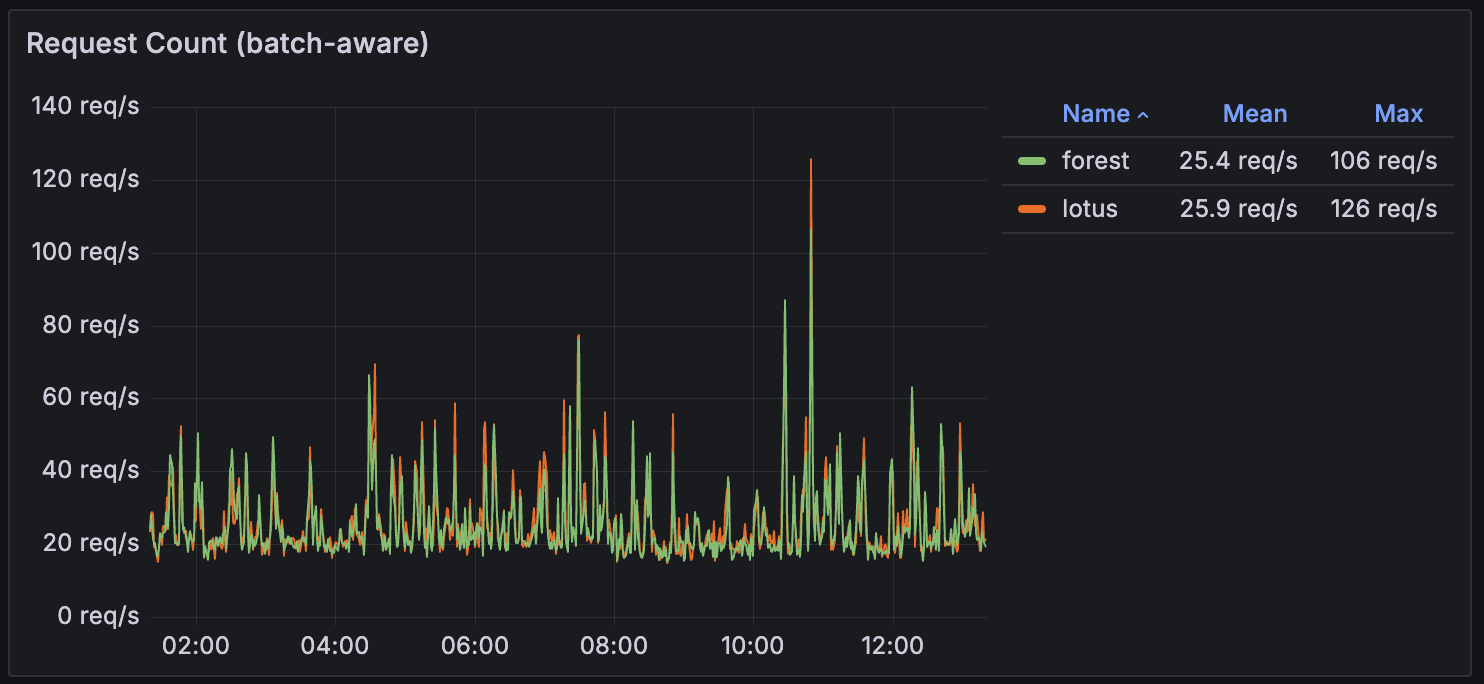

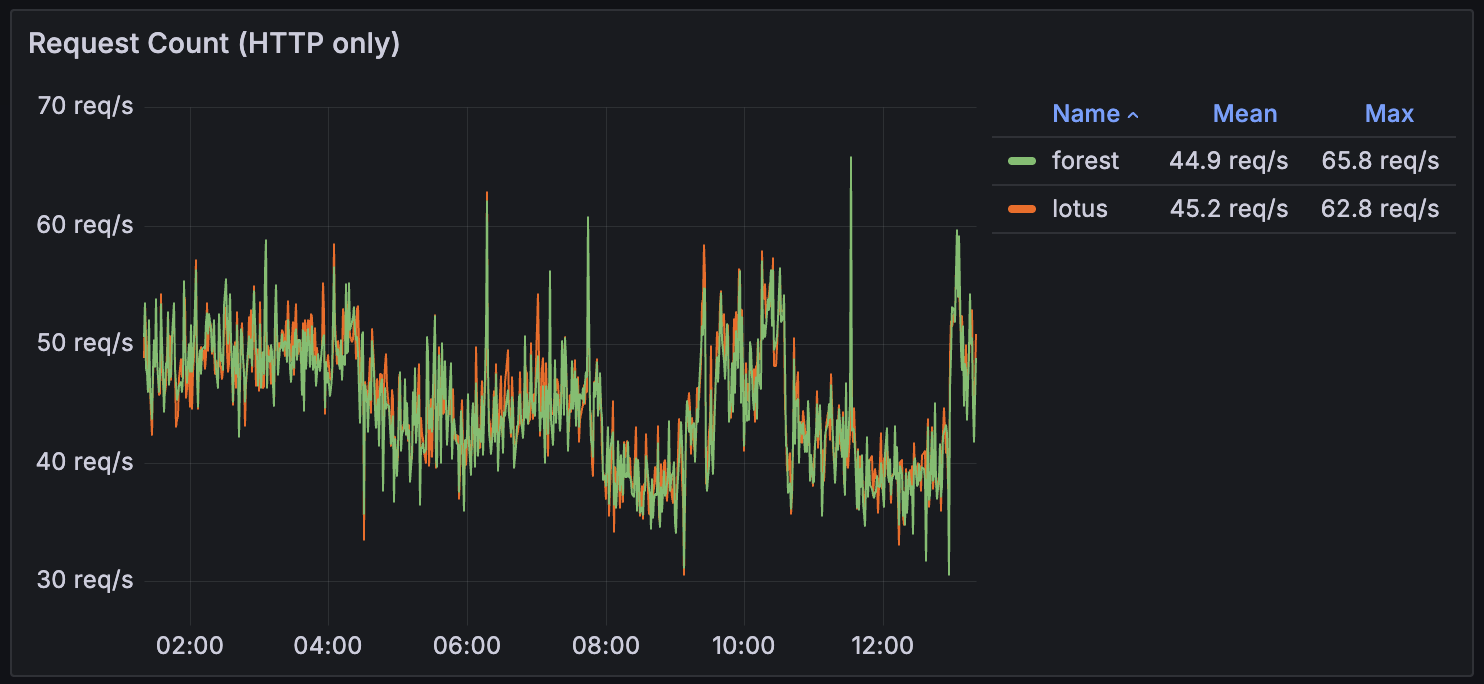

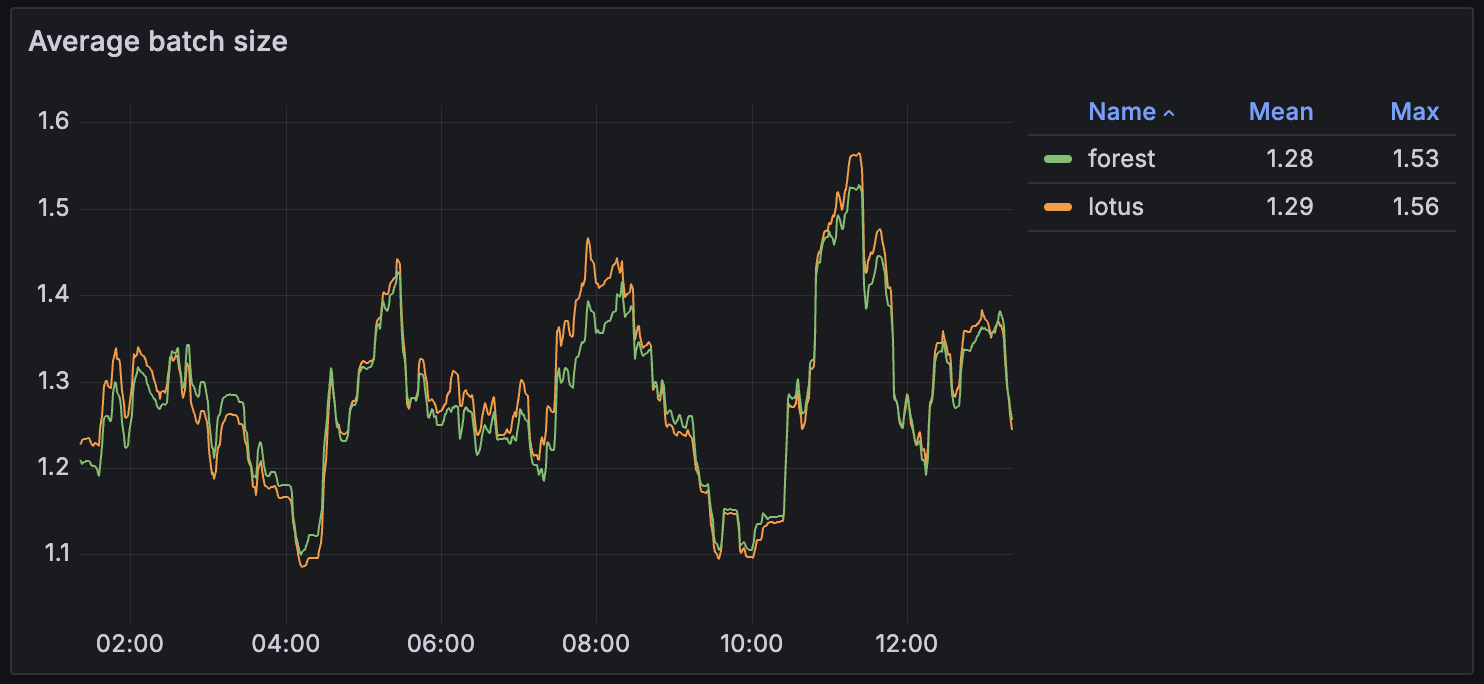

To confirm the comparison is fair, the request rates and batch sizes hitting each node line up almost exactly. HTTP request count averages 44.9 req/s for Forest and 45.2 req/s for Lotus; batch-aware counts are 25.4 vs 25.9 req/s; and average batch size is ~1.28 vs ~1.29. In other words, both nodes did essentially the same amount of work.

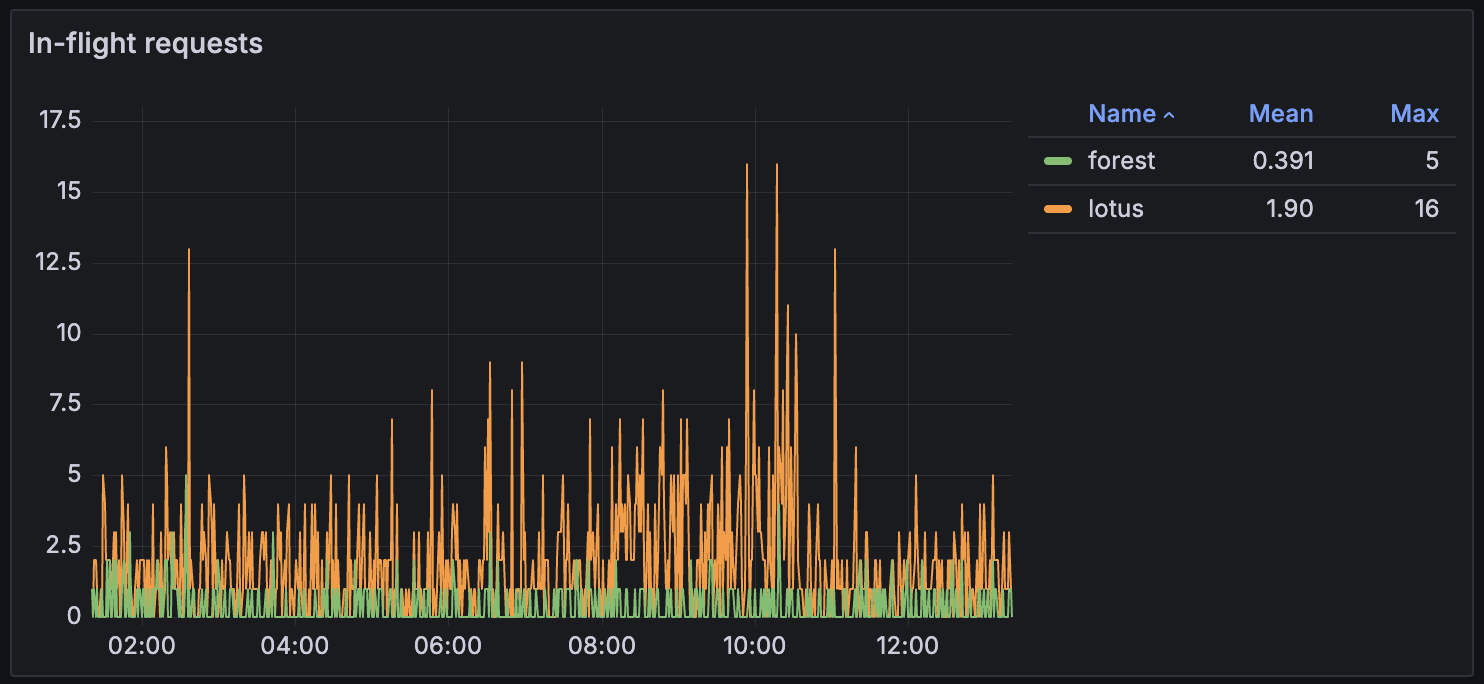

The faster turnaround also shows up in concurrency: Forest keeps far fewer requests in flight at any instant (mean 0.39, peak 5) compared to Lotus (mean 1.90, peak 16).
Resource usage

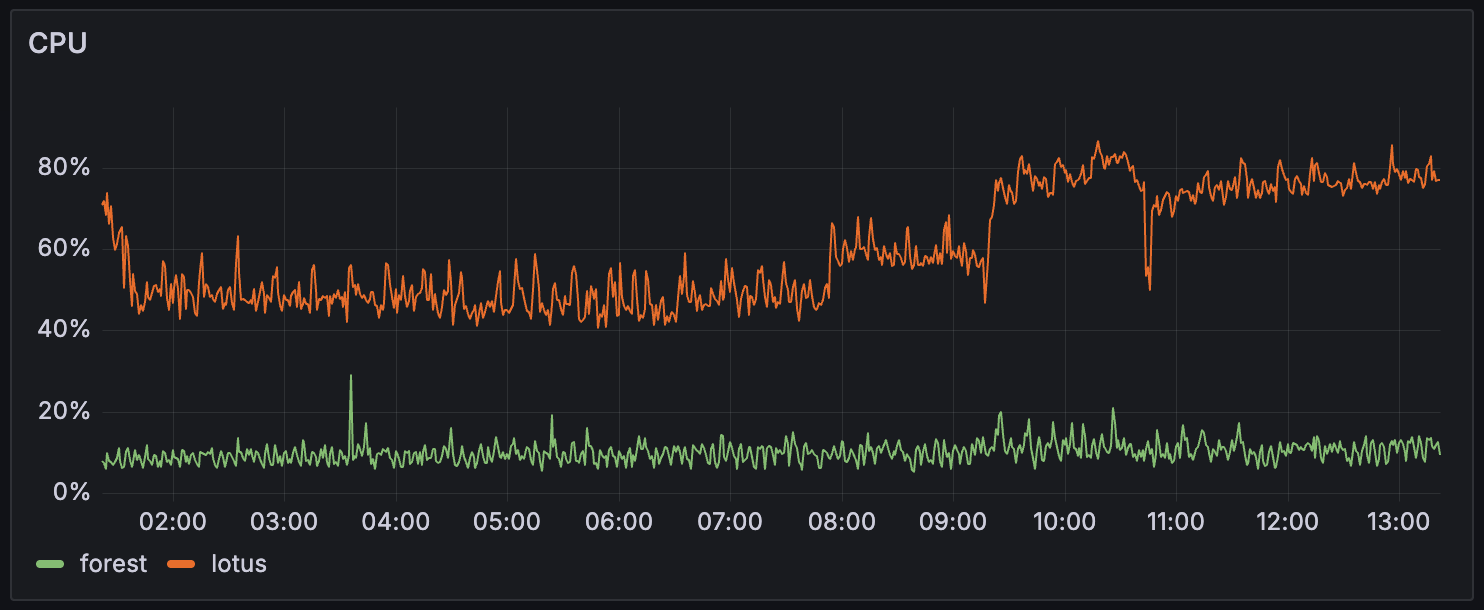

These latency gains don't come at the cost of higher resource consumption. Forest runs the same workload on roughly ~10% CPU while Lotus sits around ~40-80% and trends upward as the session goes on. Forest's CPU trace is also visibly smoother, indicating steadier, more predictable load on the machine.

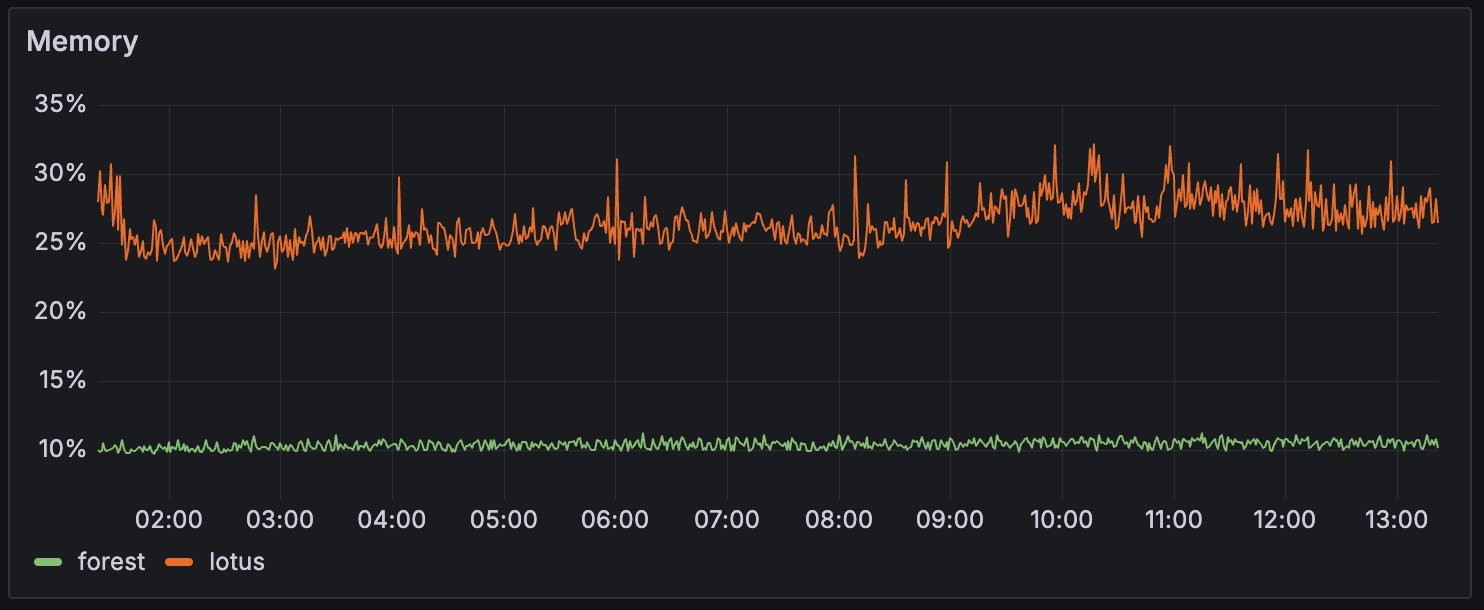

Memory follows the same pattern, with Forest around ~10% against Lotus's ~25-30%.
The absolute memory figures are higher than they appear here because of OS page caches, but the relative proportions between the two nodes still hold.
Snapshot export comparison
Snapshot export is another area where the performance work pays off. Forest plays an important role in timely, efficient network snapshot generation: while it is possible to generate a snapshot with Lotus, doing so is significantly slower and more expensive. On a regular machine, Forest completes a basic chain snapshot export dramatically faster than Lotus, and with a fraction of the memory.

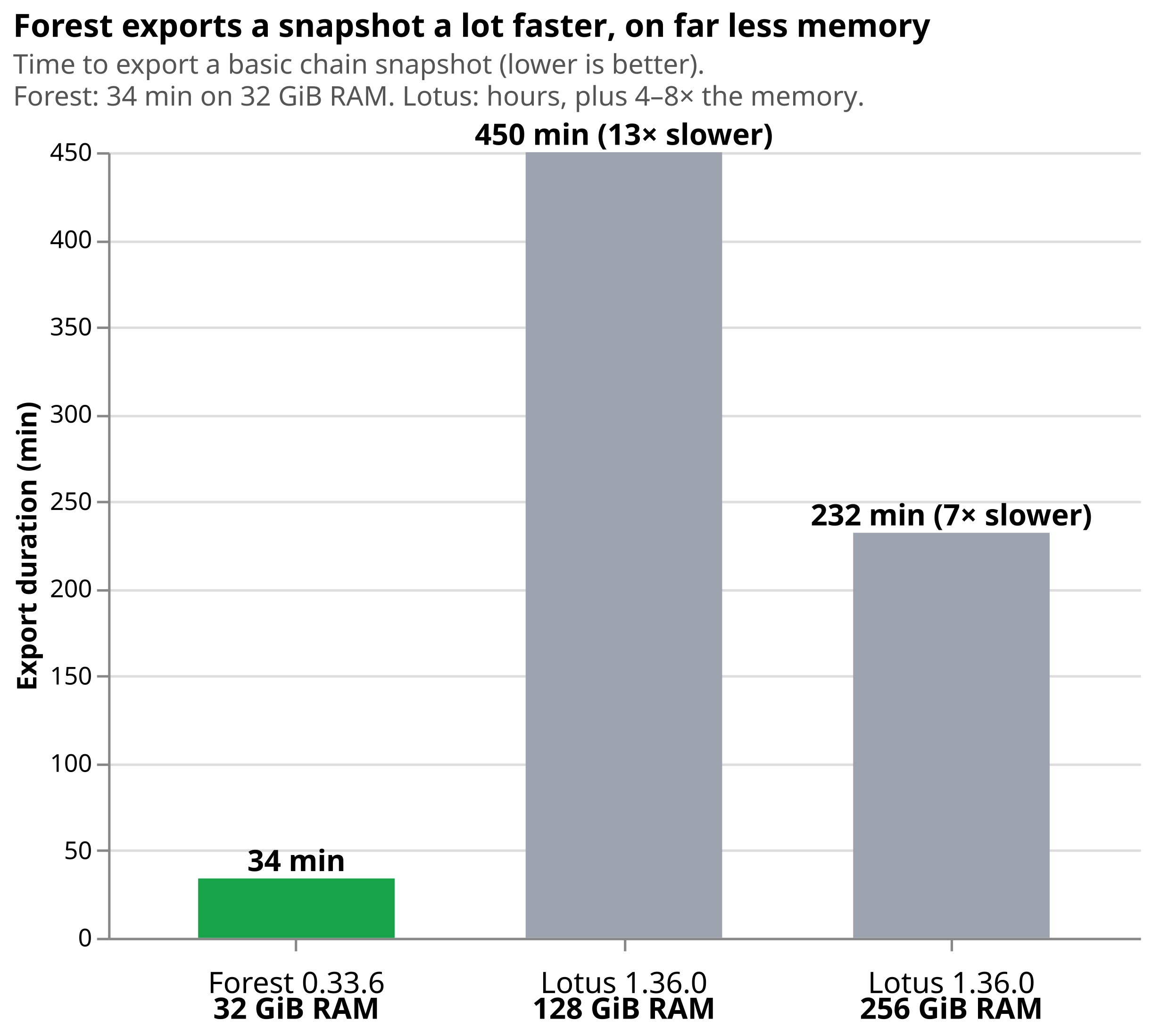

Forest 0.33.6 finished the export in 34 minutes using 32 GiB of RAM. Lotus 1.36.0 took 450 minutes (about 13x slower) with 128 GiB, and 232 minutes (about 7x slower) even with 256 GiB. Forest also needs less than half the disk space for the resulting snapshot. The table below compares a basic snapshot export across implementations.
| Required disk space [GiB] | RAM [GiB] | Export duration [minutes] | |
|---|---|---|---|
| Forest | 200 | 32 | 34 |
| Lotus | 450 | 128 | 450 |
| Lotus | 450 | 256 | 232 |
Lotus snapshots are also not compressed; Forest does it under the hood. Both implementations are able to consume compressed snapshots. This significantly reduces the cost of storing snapshots. While it’s possible to compress the snapshot after it’s been generated, it would increase the operation duration even further.
Key takeaways
- Lower tail latency: comparable P50, but far better P95 and P99, so the slow outliers that most affect reliability are much less frequent.
- Lower resource usage: less CPU and memory, with smoother, more predictable load on the machine.
- Much faster snapshot export:
7-13xfaster than Lotus while using a fraction of the RAM, with compression handled automatically.
Want to see Forest in action? Check out the RPC performance Grafana dashboard.
